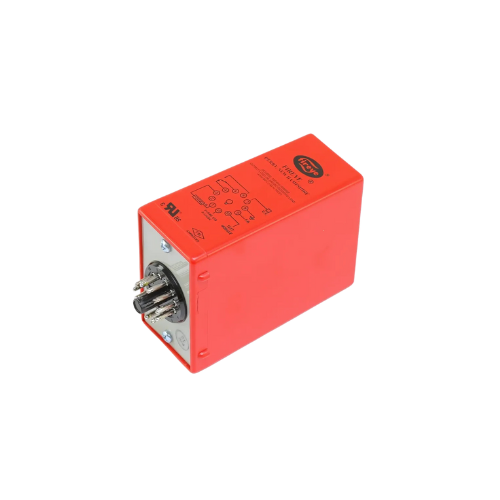

Fireye MBPF-100S Single-Channel Flame Sensor Module (120 VAC)
Model: MBPF-100S
Voltage: 120 VAC
Frequency: 50 / 60 Hz
Channel Capacity: Single
Description
The Fireye MBPF-100S is a single-channel flame sensor module designed for use with Fireye MB-Series UV scanners or flame rod inputs. Mounted on the standalone wiring base (60-2726), it delivers visual status indication and a dry contact output—enabling simple integration into burner management or safety shutdown systems. Its self-checking UV capability ensures reliable flame detection and automatic fault monitoring.
Key Features
-
Single-Channel Input for one UV scanner or flame rod
-
Self-Check UV Option with compatible Fireye sensors
-
120 VAC Operation at 50 / 60 Hz power
-
Visual & Electrical Output: Built-in LED diagnostics and SPDT relay output
-
Standalone Base Compatibility: Fits Fireye 60-2726 wiring base
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Flame Sensor Module |
| Input Channels | 1 (Single) |
| Supported Sensors | UV self-check scanners or flame rod |
| Voltage | 120 VAC |
| Frequency | 50 / 60 Hz |
| Relay Output | SPDT dry contact |
| Mounting Base | Fireye 60-2726 (sold separately) |
| Diagnostics | Status LEDs |
Ideal for industrial burners requiring robust, standalone flame monitoring with clear diagnostics and simple relay integration.
