Description

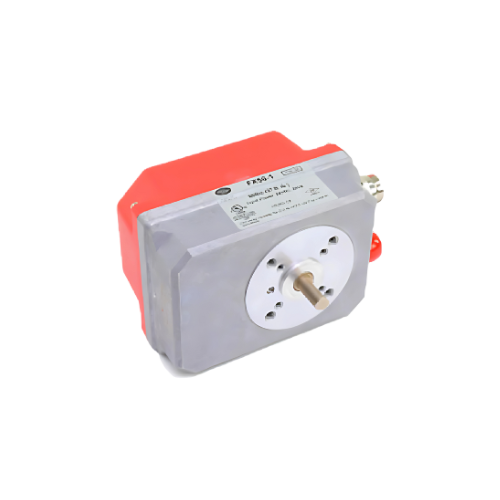

Fireye FX50-1 Modbus Servo-Motor – 5-Wire, 50 Nm (37 ft-lbs), 24 VDC, Quick Disconnect
Model: FX50-1
Torque: 50 Nm (37 ft-lbs)
Voltage: 24 VDC
Rotation: 90° in 30 seconds
Wiring: 5-Wire Modbus
Connections: Quick Disconnect Connectors
Communication: Modbus RTU
Product Overview
The Fireye FX50-1 is a high-performance servo-motor designed for precise fuel/air ratio control applications. With a torque rating of 50 Nm (37 ft-lbs) and a 90° rotation achieved in just 30 seconds, it is ideal for use in industrial burner control systems requiring reliable and accurate modulation.
This unit communicates via Modbus RTU over a 5-wire interface and features convenient quick-disconnect connectors for simplified installation and maintenance. Optimized for integration with Fireye control systems, including the PPC series, the FX50-1 enhances efficiency, consistency, and ease of operation.
Key Features
-
Strong Torque Output: 50 Nm (37 ft-lbs) for demanding industrial burner applications
-
Modbus Communication: Ensures smooth integration with digital burner management systems
-
Quick Disconnect: Simplifies wiring and servicing
-
Fast Response: 90° rotation in just 30 seconds
-
Low Voltage: 24 VDC operation for energy efficiency and safety
-
5-Wire Control: Enables precise positioning and feedback via Modbus RTU
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Servo-Motor |
| Torque | 50 Nm (37 ft-lbs) |
| Voltage | 24 VDC |
| Rotation Angle | 90° |
| Rotation Time | 30 seconds |
| Wiring | 5-Wire (Modbus) |
| Connectors | Quick Disconnect |
| Communication Protocol | Modbus RTU |
