Description

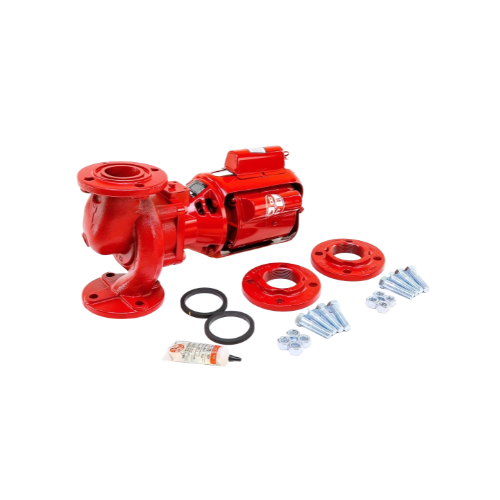

Bell & Gossett 102214 – 2 NFI Booster Pump, 1/6 HP, 115V, Oil-Lubricated Circulator, Cast Iron with Non-Ferrous Impeller
Product Highlights
-
Motor: 1/6 HP, 1725 RPM
-
Voltage: 115V, Single Phase
-
Flow Rate: Up to 75 GPM
-
Max Pressure: 125 PSI
-
Max Operating Temp: 225°F (standard seal)
-
Material: Cast Iron Housing with Non-Ferrous Impeller
-
Connection Type: Flanged x Flanged (2")
-
Includes Flanges
Product Description
The Bell & Gossett 2 NFI Booster Pump (Model 102214) is a robust, high-flow oil-lubricated circulator pump designed for large residential or light commercial hydronic heating systems. This model features a non-ferrous impeller, making it suitable for applications where corrosion resistance is essential.
The three-piece design allows for fast and easy servicing with replaceable shaft, bearing, and seal assemblies. With quiet operation and dependable performance, this pump is ideal for domestic hot water recirculation or low-pressure hot water heating loops.
Note: Flanges are included. Not suitable for potable water use.
Key Features
-
Resilient-mounted motor with built-in thermal overload protection
-
Cast iron body with non-ferrous impeller
-
Quiet and reliable performance
-
Easy field servicing
-
UL and CSA listed
-
Ideal for high-volume hydronic circulation
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 102214 |
| Pump Model | 2 NFI |
| Horsepower | 1/6 HP |
| Voltage | 115V |
| Amperage | 1.9 A |
| Phase | Single |
| Frequency | 60 Hz |
| RPM | 1725 |
| Max Flow Rate | 75 GPM |
| Flow Range | 0–75 GPM |
| Max Head | 10 ft |
| Head Range | 0–10 ft |
| Max Operating Temp | 225°F (Standard Seal) |
| Max Operating Pressure | 125 PSI |
| Material – Body | Cast Iron |
| Material – Impeller | Non-Ferrous (e.g., Bronze) |
| Connection Type | Flanged x Flanged |
| Connection Size | 2" |
| Application | Hydronic Heating |
| Includes Flanges | Yes |
