Description

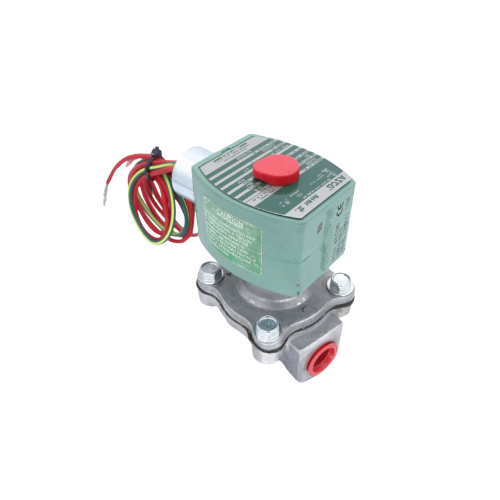

ASCO 8210G002 – 1/2" Solenoid Valve (120V, Normally Closed, 4 Cv)
High-Flow General Service Valve | For Air, Water, Light Oil, and Corrosive Fluids
The ASCO 8210G002 is a high-performance 2-way solenoid valve engineered for versatile general service applications. This normally closed valve remains shut when de-energized and opens when powered, delivering reliable flow control in demanding industrial environments. With a 4 Cv flow capacity and robust brass construction, it is ideal for use in car washes, air compressors, water treatment systems, and laundry equipment.
The valve features durable 1/2" NPT threaded connections and supports a broad range of fluids including air, inert gases, water, light oils, and corrosive fluids. Its RedHat II solenoid enclosure provides watertight protection rated to NEMA 4 and 4X standards, ensuring dependable operation even in harsh conditions.
Key Features
-
2-way, normally closed valve design for precise flow control
-
1/2" NPT threaded ports for easy installation
-
Flow capacity of 4.0 Cv for high flow rates
-
Operates on 120V AC with low power consumption (6.1 Watts)
-
Compatible with air, inert gases, water, light oil, and corrosive fluids
-
Maximum fluid temperature rating up to 180°F
-
Maximum pressure ratings: 200 psi (air), 150 psi (water), 135 psi (light oil)
-
Durable brass body with resilient internal components
-
Watertight RedHat II solenoid enclosure (NEMA 4, 4X)
-
Suitable for any mounting position; vertical preferred
Specifications
| Attribute | Details |
|---|---|
| Valve Type | 2-Way, Normally Closed |
| Port Size | 1/2" NPT Threaded |
| Flow Capacity (Cv) | 4.0 |
| Voltage | 120V AC |
| Wattage | 6.1 Watts |
| Compatible Fluids | Air, Inert Gas, Water, Light Oil, Corrosive Fluids |
| Max Fluid Temp | 180°F |
| Max Pressure (AC) | 200 psi (Air), 150 psi (Water), 135 psi (Light Oil) |
| Enclosure Rating | NEMA 4, NEMA 4X (Watertight) |
| Construction | Brass Body, Durable Internal Components |
| Mounting Position | Any (Vertical Preferred) |
| Common Uses | Car Wash, Compressors, Water Control, Pumps |
